Legacy-PC for ISA and PCI Industrial Motherboard Computers

Welcome To LEGACY PC

We build and supply legacy PC's with ISA and PCI slots for industrial applications.

If you have an interface card that requires an ISA, EISA or PC slot then Legacy PC has the solution.

We are currently supplying an industrial motherboard with the following specification.

Chipset	Intel945GV + ICH7 chipsets ITE IT8712F LPC controller RTL8111CEthernet controller LGA 775 socket E5400 2.7 GHz Dual Core
Memory	Two 240-pin DDRII sockets Support DDRII 400/533/667 SDRAM up to 4GB
VGA	Integrated Graphics controller in 945GV GMCH Integrated Intel Graphics Media Accelerator 950 One VGA Port it can accelerate DirectX 9 performance of hardware,400MHz core frequency,up to 224MB display memory.
Ethernet	Onboard two RTL8111C 10/100/1000Base-T Ethernet controllers Full-Duplex supported
IDE SATA & FDD	One enhanced PCI IDE channels which support up to 2 IDE devices Four SATA devices Support ATA-100, data transfer rate up to 100MB/sec One FDC supports 1.2M/1.44M/2.88M FDD
PCI-E PCI ISA AUDIO COM & LPT	Support One PCI-E X16 devices Support five PCI devices Support two ISA devices Support 7.1 HDAudio Support two COM Support one LPT
System BIOS	Award BIOS with 4MB Firmware Hub ACPI / PnP supported Software WatchDog supported

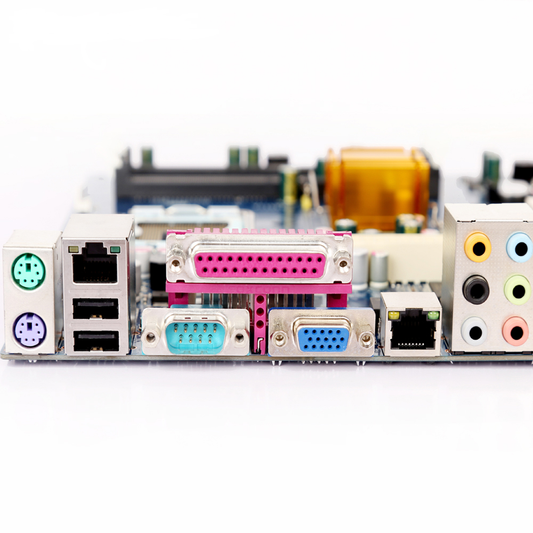

I / O Output	Two COM port & one Printer port One DB-15 VGA port PS / 2 mouse and keyboard connectors Double Deck downstream USB 2.0 ports Two RJ-45 LAN ports
Expansion Slots	Five PCI slot Two ISA slot
Form Factor	Flex-ATX 305 mm (L) × 244 mm (W), 4 Layers

Price £260 Ex VAT

This website is continuously under development. Please use the contact page so that we can discuss your requirements.
